Community Village: User Needs
Elderly
User Characteristic: loss of muscle mass and strength, creating fatigue
Design Solution: seating should be abundant and convienece necessary
User Characteristic: loss of sensitivity to light, loss of color sensitivity, difficulty seeing little variation between light and dark
Design Solution: wayfinding design , higher contrast materials, visibility from room to room, choice of materials, lighting and finishes
User Characteristic: loss of calcium and other nutrients
Design Solution: vitamins and high calcium and nutrient foods in convience store
User Characteristic: depression
Design Solution: social interaction areas, group activities and open floor plan creating sense of community
User Characteristic: social luncheons, movies, excursions-
Design Solution: provide multi-pupose room for activities and establish volunteer group to organize trips
User Characteristic: privacy need
Design Solution: provide some private spaces such as multi purpose room closing off and conference room on 2nd floor
User Characteristic: sensitivity to changes in temperature
Design Solution: smaller common areas with manual temperature controls, larger areas more constant temperature average tolerable by all occupants
Monday, March 22, 2010

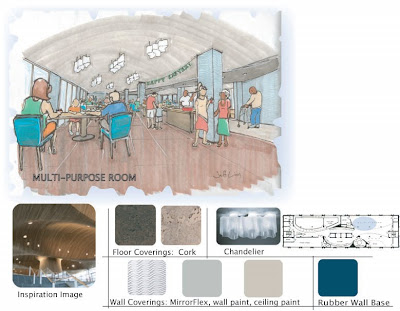

Perspectives: Community Village
and after further exploration, more I experimented with more developed perspectives.
Group member Jeff Linn developed these additional perspectives for Unity Village's second floor.
Friday, March 19, 2010
Addressing Questions on Design Process
How I relate design thinking, use and implement it in the future will be based on my design experiences and processes. Design processes is trial and error which leads to beneficial designs and answers. Including everyone in the design process is a key factor contributing to successful design. Thus, a designer relates to the occupants’ individual needs. This along with prototyping helps to eliminate any final problems.
COMMUNITY Village: Design Development-Standards
INTERIOR PLANNING STANDARDS FOR SPACES
MULTI-PURPOSE ROOM
*from Recommendations For Child Care Centers, Moore, Lane, Hill, Cohen, McGinty. 1979. P.409RESTROOM STANDARDS
-General:
Source: Chiara, J., Panero, J. & Zelnik, M.(2001). Time-Saver Standards For Interior Design and Space Planning. (pp.675-729) New York : McGraw-Hill
· Incandescent or fluorescent lights recommended
· 3’-0” center distance b/w toilets
· 3’-1 1/2” center distance from sink to left/right structural wall
· 2’-2” Center to center for sinks
· 2’-6” center distance from sink to center urinal
· 1’-7 1/2 “ center toilet to right/left structural wall
· 2’-0” Urinals center to center
· 2’-0” deep partition wall to separate urinal space from others
· 4’-9” wide partition side walls
· 2’-8” to 3’-0” width partitions
· 4’-8” to 5’-0” deep partitions
· 3’-4” AFF general trash can
· 6’-6” AFF recessed towel cabinet and waste receptacle
· 3’-8” AFF soap dispenser
· 2’-7” AFF sinks mounted
· 6’-6” AFF feminine product dispenser
· 6’-0” AFF Mirror mount
· 6’-6” AFF Vanity light mount
· 2’-6” AFF vanity top
· 6” vanity backsplash
· 2’-6” AFF toilet paper dispenser location
· 2’-9” toilet paper dispenser from back wall
· 3’-4” min walkways
· 3’-0” doorway
· 5’-10” AFF min to top of stall door
· 7’-5” AFF total stall height
Building Type / Water Closets / Urinals
Lavatories / Drinking Fountains / Other Fixtures
· 2’-3” to bottom edge of sink
· 2’-5” AFF min, 2’-8” preferred, 2’-10” max to sink top
· 9” toe space at sink
· 8” min. knee space area at sink
· 17” min. sink sits out from wall
· 5’-4” AFF paper towel dispenser
· 2’-6” toilet paper dispenser from structural wall
· 3’-4” to bottom of handicap mirror
· 3’-0” clearance into stall
· 4’-8” min stall depth
· 3’-6” grab bar recommended in stall 12” for back wall
· 2’-9” AFF grab bar
· 2’-0” grab bar centered behind toilet
· 2’-0” AFF toilet paper dispenser, 3’-6” from back wall
· 1’-6” toilet from structural wall
· 1’-6” AFF to top of toilet
· 3’-3 to 4” AFF to center for feminine dispenser and paper towel dispenser, to bottom of soap dispenser
· 5’-0” wide Barrier free partition
· 4’-11” deep partition interior
· 3” stall door hinged from structural wall
· 2’-10” wide stall door
· 5’-0” clear floor so wheel chair can turn 360 degrees
· 2’-6” X 4’-0” clear floor space from center sink out
· 2’-3” AFF to underside of sink bowl
-Children
ELEVATOR STANDARDS
Source: Chiara, J., Panero, J. & Zelnik, M.(2001). Time-Saver Standards For Interior Design and Space Planning.(p.1469) New York : McGraw-Hill
JANITOR CLOSET STANDARDS
Source: Chiara, J., Panero, J. & Zelnik, M.(2001). Time-Saver Standards For Interior Design and Space Planning.(pp.675-729) New York : McGraw-Hill
· 2’-0” min from sink center to right & left structural walls
· 5’-8” AFF broom rack
· sloped floor with drain
FITNESS CENTER STANDARDS
Source: Sawyer, Thomas.(2005). Facility Design and Management: for Health, Fitness, Physical Activity, Recreation, And Sports Facility Development.(pp.366-379). Illinois: Sagamore Publishing, L.L.C.
· Tallest machine & equipment along walls, smaller machines in middle
· Weight mahines + apparatus at least 2’-0” from each other & suggested 3’-0” apart.
· Platform spaces need to have good overhead clearance, at least 12’-0”
· 3’-0” clear pathways always
· equipment 6” from mirrors
· mirrors 20” AFF
· group equipment into organized priority sections
· 20-25 sq ft for each user of the equipment
· 20-40 sq ft for each machine
· flooring materials: shock absorbing, 0.5-.07 friction DIN Standard, needs to maintain a rolling load
· 12’-0” ceiling height min. in free weight area, 10’-0” in strength training area
· lighting 50-100 foot-candles
· machines are 120V/20AMPS
· need NEMA 5-20 receptacles
· Air temperature keep constant, between 68-72 degrees
· Ventilation needs to provide 8-10 air exchanges per hour
· Need double wide entrance
· At least 220V outlets for maintenance equipment
· Children under 14yrs old must be with adult
· Signage addressing user maintenance, safety, and who to reference for help
WORKOUT ROOM STANDARDS
Source: Sawyer, Thomas.(2005). Facility Design and Management: for Health, Fitness, Physical Activity, Recreation, And Sports Facility Development.(pp.366-379). Illinois: Sagamore Publishing, L.L.C.
· Air temperature keep constant, between 68-72 degrees
· Need double wide entrance
· lighting 50-100 foot-candles
· Wooden floors common
· Need storage area for equipment
· Need mirrors, but don’t overuse
*from Time-Saver Standards For Interior Design And Space Planning, DeChiara, Panero and Zelnik. 1991. p.1107
LOUNGE
*from Time-Saver Standards For Interior Design And Space Planning, DeChiara, Panero and Zelnik. 1991. p.313
CHILD CARE CENTER
*from Designing A Day Care Center, E. Belle Evans, Saia, Elmer A. Evans. 1974. p. 3
*from Recommendations For Child Care Centers, Moore, Lane, Hill, Cohen, McGinty. 1979. P.409
-General:
Source: Chiara, J., Panero, J. & Zelnik, M.(2001). Time-Saver Standards For Interior Design and Space Planning. (pp.675-729) New York : McGraw-Hill
· Incandescent or fluorescent lights recommended
· 3’-0” center distance b/w toilets
· 3’-1 1/2” center distance from sink to left/right structural wall
· 2’-2” Center to center for sinks
· 2’-6” center distance from sink to center urinal
· 1’-7 1/2 “ center toilet to right/left structural wall
· 2’-0” Urinals center to center
· 2’-0” deep partition wall to separate urinal space from others
· 4’-9” wide partition side walls
· 2’-8” to 3’-0” width partitions
· 4’-8” to 5’-0” deep partitions
· 3’-4” AFF general trash can
· 6’-6” AFF recessed towel cabinet and waste receptacle
· 3’-8” AFF soap dispenser
· 2’-7” AFF sinks mounted
· 6’-6” AFF feminine product dispenser
· 6’-0” AFF Mirror mount
· 6’-6” AFF Vanity light mount
· 2’-6” AFF vanity top
· 6” vanity backsplash
· 2’-6” AFF toilet paper dispenser location
· 2’-9” toilet paper dispenser from back wall
· 3’-4” min walkways
· 3’-0” doorway
· 5’-10” AFF min to top of stall door
· 7’-5” AFF total stall height
Building Type / Water Closets / Urinals
Lavatories / Drinking Fountains / Other Fixtures
-Handicap:
· 2’-3” to bottom edge of sink
· 2’-5” AFF min, 2’-8” preferred, 2’-10” max to sink top
· 9” toe space at sink
· 8” min. knee space area at sink
· 17” min. sink sits out from wall
· 5’-4” AFF paper towel dispenser
· 2’-6” toilet paper dispenser from structural wall
· 3’-4” to bottom of handicap mirror
· 3’-0” clearance into stall
· 4’-8” min stall depth
· 3’-6” grab bar recommended in stall 12” for back wall
· 2’-9” AFF grab bar
· 2’-0” grab bar centered behind toilet
· 2’-0” AFF toilet paper dispenser, 3’-6” from back wall
· 1’-6” toilet from structural wall
· 1’-6” AFF to top of toilet
· 3’-3 to 4” AFF to center for feminine dispenser and paper towel dispenser, to bottom of soap dispenser
· 5’-0” wide Barrier free partition
· 4’-11” deep partition interior
· 3” stall door hinged from structural wall
· 2’-10” wide stall door
· 5’-0” clear floor so wheel chair can turn 360 degrees
· 2’-6” X 4’-0” clear floor space from center sink out
· 2’-3” AFF to underside of sink bowl
-Children
ELEVATOR STANDARDS
Source: Chiara, J., Panero, J. & Zelnik, M.(2001). Time-Saver Standards For Interior Design and Space Planning.(p.1469) New York : McGraw-Hill
JANITOR CLOSET STANDARDS
Source: Chiara, J., Panero, J. & Zelnik, M.(2001). Time-Saver Standards For Interior Design and Space Planning.(pp.675-729) New York : McGraw-Hill
· 2’-0” min from sink center to right & left structural walls
· 5’-8” AFF broom rack
· sloped floor with drain
FITNESS CENTER STANDARDS
Source: Sawyer, Thomas.(2005). Facility Design and Management: for Health, Fitness, Physical Activity, Recreation, And Sports Facility Development.(pp.366-379). Illinois: Sagamore Publishing, L.L.C.
· Tallest machine & equipment along walls, smaller machines in middle
· Weight mahines + apparatus at least 2’-0” from each other & suggested 3’-0” apart.
· Platform spaces need to have good overhead clearance, at least 12’-0”
· 3’-0” clear pathways always
· equipment 6” from mirrors
· mirrors 20” AFF
· group equipment into organized priority sections
· 20-25 sq ft for each user of the equipment
· 20-40 sq ft for each machine
· flooring materials: shock absorbing, 0.5-.07 friction DIN Standard, needs to maintain a rolling load
· 12’-0” ceiling height min. in free weight area, 10’-0” in strength training area
· lighting 50-100 foot-candles
· machines are 120V/20AMPS
· need NEMA 5-20 receptacles
· Air temperature keep constant, between 68-72 degrees
· Ventilation needs to provide 8-10 air exchanges per hour
· Need double wide entrance
· At least 220V outlets for maintenance equipment
· Children under 14yrs old must be with adult
· Signage addressing user maintenance, safety, and who to reference for help
WORKOUT ROOM STANDARDS
Source: Sawyer, Thomas.(2005). Facility Design and Management: for Health, Fitness, Physical Activity, Recreation, And Sports Facility Development.(pp.366-379). Illinois: Sagamore Publishing, L.L.C.
· Air temperature keep constant, between 68-72 degrees
· Need double wide entrance
· lighting 50-100 foot-candles
· Wooden floors common
· Need storage area for equipment
· Need mirrors, but don’t overuse
COMMUNITY Village: Design Development-Concept statement
CONCEPT STATEMENT
Wind is invisible yet powerful enough to shape stone. Like the winds moving across the earth pulling from different areas and flowing together, the Unity Village pulls together diverse occupants in a fluid way that will refresh and uplift its tenants by utilizing open and airy design. The design layout of Unity Village intertwines the lives of its diverse tenants in positive ways that are not always physically visible, yet its community enhancing effects are obvious.
